Schimmelpilz: | Nein | Status der Erzeugnisse: | Lagerbestand |
---|---|---|---|
Typ: | Haltestelle | Typ des Prozessors: | Intel-xeon |

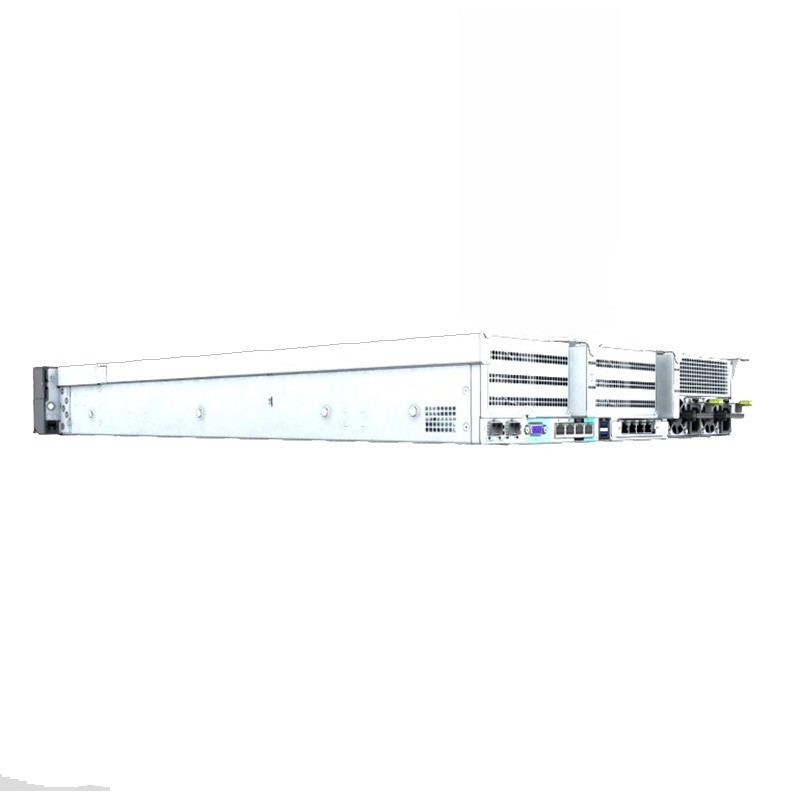

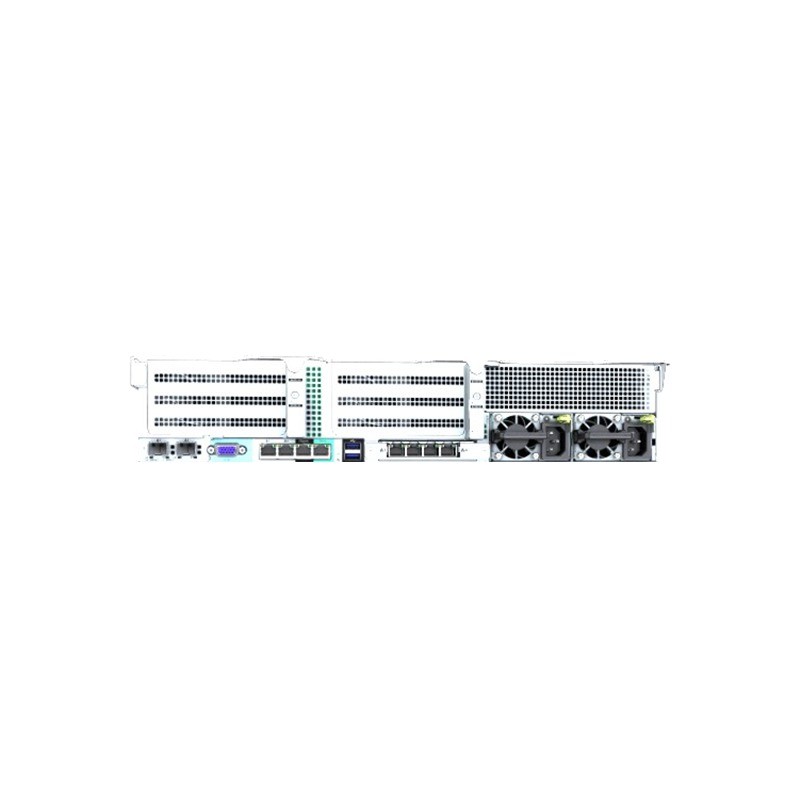

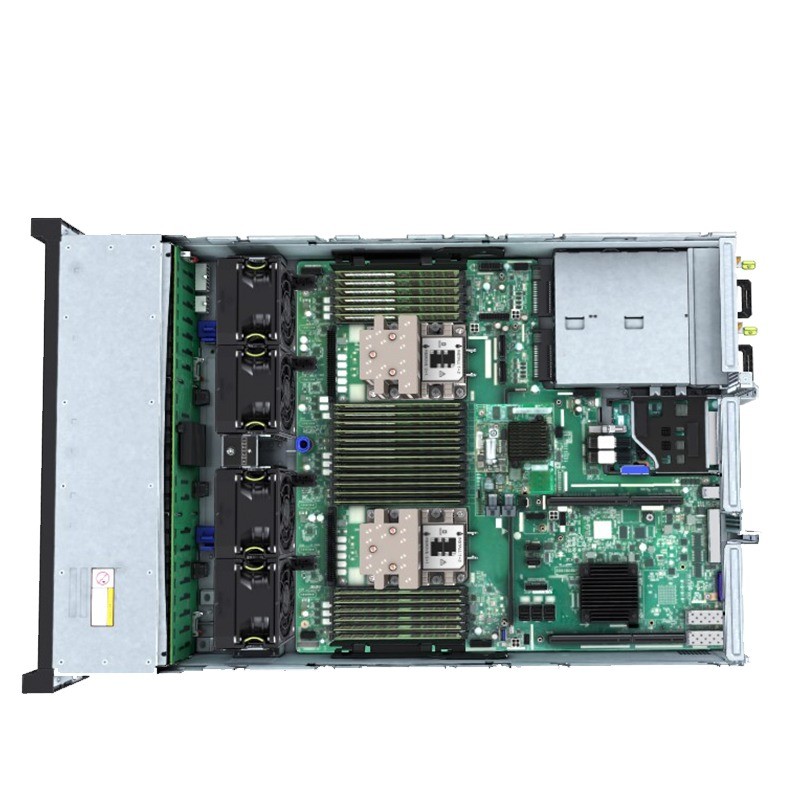

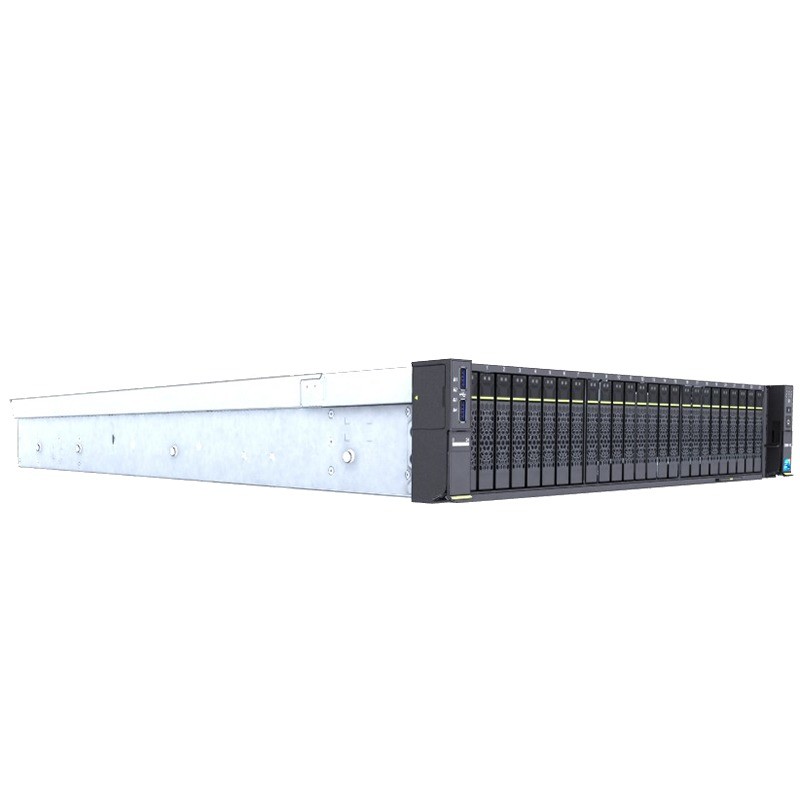

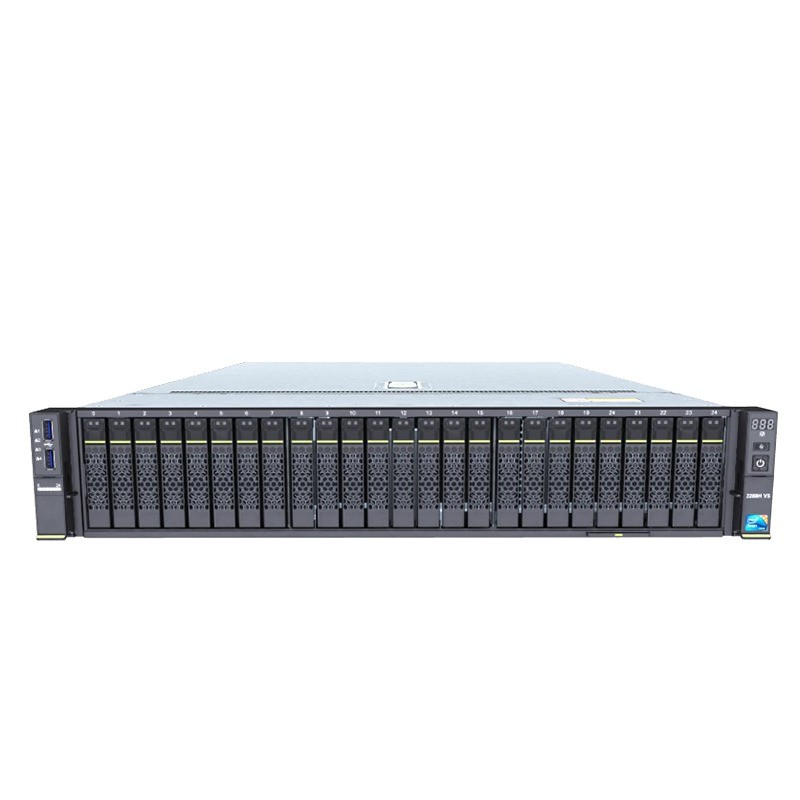

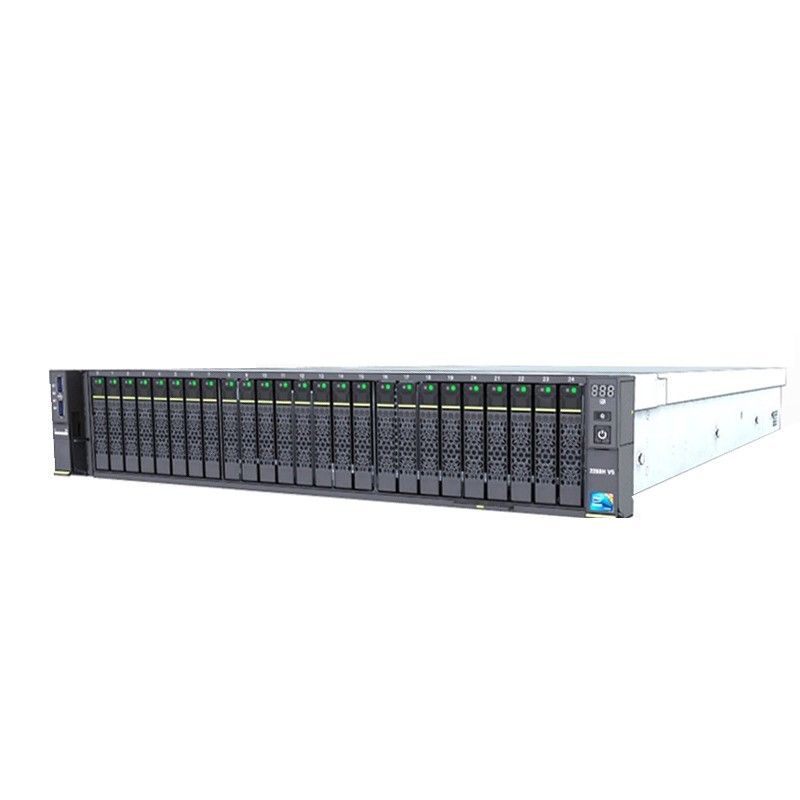

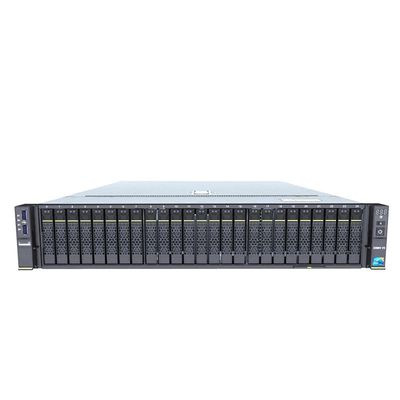

Artikel | XFusion 2288H V5 Intel Xeon CPU PC Computer 2u Rack Server |
Marke | XFusion |
Typ | 2U Dual Socket Rack-Server |
Verarbeiter | 1 oder 2 Intel® Xeon® Skalierbare Prozessoren der ersten Generation (Serie 3100/4100/5100/6100/8100), bis zu 205 W Intel® Xeon® Skalierbare Prozessoren der 1. oder 2. Generation (Serie 3200/4200/5200/6200/8200), bis zu 205 Watt |
Gedächtnis | 24 DDR4-DIMM-Slots, 2933 MT/s; bis zu 12 Intel® OptaneTM PMem-Module (100er Reihe), 2666 MT/s |
Speichercontroller | RAID 0, 1, 1E, 5, 50, 6 oder 60; optionale Superkondensator für den Schutz vor dem Cache-Stromausfall; Migration auf RAID-Ebene, Drive-Roaming, Selbstdiagnose und webbasierte Fernkonfiguration |
Antriebsräume | Unterstützt hot-swappable Festplatten mit folgenden Konfigurationsoptionen: • 8/20/24/25/31 x 2,5 Zoll SAS/SATA/SSD Festplatten •12/16/20 x 3,5 Zoll SAS/SATA Festplatten • 4/8/12/24/28 NVMe SSDs Flashspeicher: • 2 M.2 Festplatten |
Stromversorgung | 2 warmwechselbare Leistungsanbieter mit Unterstützung der Redundanz 1+1 und folgenden Konfigurationsmöglichkeiten: • 550 Watt Wechselstromplatin-Versorgungsanlagen (Eingang: 100 V bis 240 VAC oder 192 V bis 288 V Gleichstrom) • 900 Watt Wechselstromplatin/Titanium-Stromversorger (Eingang: 100 V bis 240 V Wechselstrom oder 192 V bis 288 V Gleichstrom) • 1500 Watt Wechselstromplatin-Stromversorgungsanlagen • 1000 W (Eingang: 100 V bis 127 V Wechselstrom) • 1500 W (Eingang: 200 V bis 240 V Wechselstrom oder 192 V bis 288 V Gleichstrom) • 1500 W 380 V Hochspannungsnetzteile (Eingang: 260 V bis 400 V Gleichspannung) • 1200 W -48 V bis -60 V Gleichspannungsanlagen (Eingang: -38,4 V bis -72 V Gleichspannung) |
